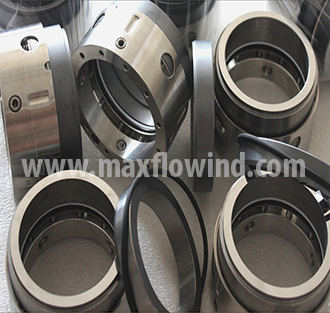

Multi Spring Seal
Seal Type : MFI-MLT 701
The Series 701 are multi spring mechanical seal made for various applications. It’s compact Design is easy to install and also easy for maintainance. This seals are independent of direction of rotation. It is internally mounted balance mechanical seal. It may install to all types of centrifugal pumps due to its compact design.
By changing it’s seal ring component it can be easily convert to ‘Wedge type’ 701 from ‘O’ Ring type or vice versa depends on it’s application.
For easy installation and removal of the seal, all components are held together with the snap ring. All parts are interchangeable, one can easily convert 701 by changing its seal ring and secondary seal.This concept is ideal for Stock rationalization.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Internally Mounted
- Unbalanced and balanced
Applications:
- Petrochemicals
- Petroleum Refinery
- General Chemicals
- Light Hydrocarbon
Material of Construction:
- Seal body : AISI 304, AISI 316, Hastelloy-C, Alloy-20
- Face Material : Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
- Elastomers : Viton, EPDM, TTV, FEP, Aflas, Kalrez, PTFE, GFT
Operating Limits:
- Pressure : upto 35 Bar
- Temperature : -20°C to +200°C
- Shaft Dia : 12mm to 100mm
