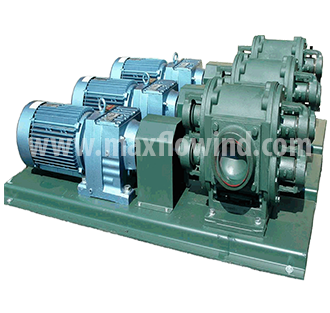

Rotary Gear Pump
MFI-GRP Series
Multi Purpose Rotary Gear Pumps With Double Helical Gears
Application:
To deliver a variety of light and viscous liquids such as oil, fats, coal tar, paint, molasses.
Highly viscous or semi viscous liquids like ammonia, bleaches, coaltar, dyes, fruits juice, gasoline, glycerin, glue, grease.
Paints, soap solution etc...
Operating Data:
- Capacity : Up to 200 m3/hr
- Head : Up to 120 Mtr.
- Discharge Size : 12 mm to 200 mm
- Temperature : Up to 250°C
- Speed : Up to 1500 rpm
- Pressure : Up to 12 kg/cm2
- M.O.C : C. I. , C. S. , SS-304 / 304L, SS316 / 316L, Alloy-20, CD4MCU, Hastalloy B & C, etc.
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt.
