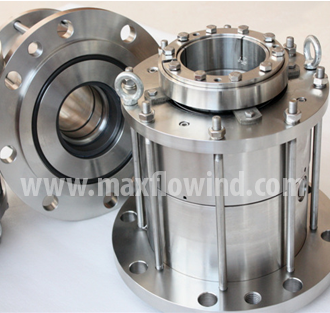

Agitator Seal
Seal type : MFI-AGT 709
The Series 709 Agitator seals are design for handling severe services including products emitting highly toxic vapours during Reaction process. Packed in one compact, unitized cartridge assembly design which is easy for installation. These Seals are independent in the Direction of Rotation used in various type of Equipment like Agitator, Reactors, Mixers & Glass line vessel
These Seals require Cooling & quenching for better performance. The Jacketed Cooling also helps to maintain the cool environment around the seal. This seal are also supported by the Thermosyphon system to maintain the temperature & pressure inside the Seal Housing.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Easy to install
- Cartridge Design
Applications:
- Petrochemicals
- Light hydrocarbon
- General chemical etc
Material of Construction:
- Seal body : AISI 304, AISI 316, Hast’C’, Alloy-20
- Face Material : Carbon/ Silicon Carbide / Ceramic ( 99.5% ),Tungsten Carbide
- Elastomers : Viton, Aflas, FEP, Kalrez,, TTV, PTFE, GFT
Operating Limits:
- Pressure : Full Vacuum to 25 Bar
- Temperature : 60°C to 200°C
- Shaft Dia : 30mm to 150mm
