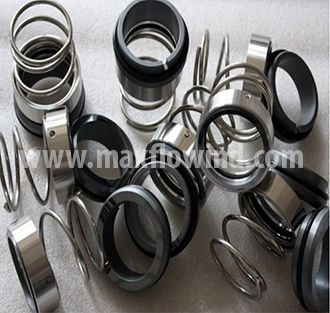

Conical Spring Seal
Seal Type : MFI-CON 708
The Series 708 is a single conical unbalance mechanical seal.These type of seals are dependent of shaft direction of rotation. Clockwise rotating Shaft Required Right Handed Spring & Anticlockwise rotating Shaft Required Left Handed Spring. the conical helical spring should be pushed on the shaft with a twisting motion in the sense of the spring unwinding.
The Rotating Shaft transmit the torque to the spring. This seal are easy to install.
Product Features:
- Dependent in the Direction of Rotation
- Unbalanced
- Internally Mounted
Applications:
- Water Pumps
- Chemical Process pumps
- Petroleum Refinery
Material of Construction:
- Seal body : AISI 304, AISI 316
- Face Material : Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
- Elastomers : Viton, EPDM, Nitrile, Neuprene, Aflas
Operating Limits:
- Pressure : Upto 08 Bar
- Temperature : -20°C to +200°C
- Shaft Dia : 10mm to 100mm
