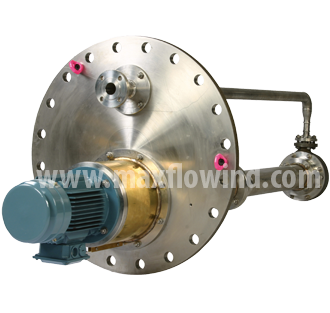

Vertical Pump

MFI-VRTL Series
Vertical Sealess Glandless Long Shaft Sump Pumps


Application:

The "MFI" sump pump is suitable for handling thin, clean or slightly contaminated. liquids, such as water treatment plant, effluent treatment plant, electro plating, picking & steel rolling mills, cleaning products, chemicals and hydrocarbons. Sulphuric Acid application, acid transfer, aquariums, chemical processing, Chloralkali, General Processing Industry, Light slurries, organic Chemicals, Polymers, Petrochemical Processing, Slurries, Solvents, Waste Processing.Vessels, industrial-pumping petroleum products, chemical.

Excellent for transfer and loading unloading like HCL, Sulphuric Acid/Alkai, Caustic Liquid.

Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc.

For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc...

Ideal for circulation of chemical in metal finishing industry.

Natural choice for picking line & scrubber in steel plants.

High capacity transfer pump, filter press for dyes & chemicals, descaling, oil


Advantage:

No. 1 Choice for effluent treatment plants since are no mechanical seals / glands.

Can run dry due to absence of shaft seals.

Few parts facilities maintenance.


Operating Data:

  • Capacity             : Up to 325 m3/hr
  • Head                    : Up to 60 Mtr.
  • Discharge Size : 25 mm to 125 mm
  • Temperature     : 60°C
  • Pump Length     : Up to 4 Mtr.
  • Speed                  : Up to 3500 rpm
  • Pressure            : Up to 6 kg/cm2
  • M.O.C                  : C.I, C.S., SS-304 / 304L, SS316 / 316L, Polypropylene, PVDF, Alloy-20, CD4MCU, Hastalloy B                                       & C, etc...
