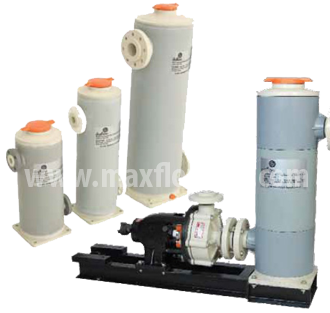

Self Priming Pump
MFI-SLFP Series
Single Stage Horizontal, Non-Clog Self Priming Pumps
Application:
The "MFI" pump is suitable for handling thin, clean or slightly contaminated liquids, such as water treatment plant, effluent treatment plant, electro plating, picking & steel rolling mills, cleaning products, chemicals and hydrocarbons.
Sulphuric Acid application, acid transfer, aquariums, chemical processing, Chloralkali, General Processing Industry, Light slurries, organic Chemicals, Polymers, Petrochemical Processing, Slurries, Solvents, Waste Processing.Vessels, industrial-pumping petroleum products, chemical.
Excellent for transfer and loading - unloading like HCL, Sulphuric Acid/Alkai, Caustic Liquid.
Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc.
For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc...
Ideal for circulation of chemical in metal finishing industry.
Natural choice for pickling line & scrubber in steel plants.
High capacity transfer pump, filter press for dyes & chemicals, descaling, oil
Operating Data:
- Capacity : Up to 150 M3/hr.
- Head : Up to 70 Mtr.
- Suc. Head : Up to 5 Mtr.
- Discharge Size : 25 mm to 100 mm
- Solid Size : Up to 50 mm
- Temperature : Up to 300°C
- Speed : Up to 3500 rpm
- Pressure : Up to 5.5 kg/cm2
- M.O.C : C. I. , C. S. , SS-304 / 304L, SS316 / 316L, Polypropylene, PVDF, Alloy-20, CD4MCU, Hastalloy B & C, etc..
The solution for suction left application:
“MFI” Priming Chamber” can take suction left of 3 meter with volume of 20-60 liter.
Priming Chamber are available for all M.O.C. as per customer requirement.
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt.
