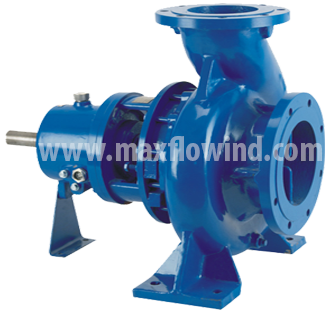

High Pressure Centrifugal Pump
MFI-HPSP Series
Single Stage End Suction Back Pull-Out Type Centrifugal Pumps
Application:
Hot and cold water circulation, cooling water circulation.
Drip irrigation, water supply and building services.
Thermic fluid, jet, dyeing, volatile fluids.
Condensate handing, fire fighting system, environmental.
Engineering, marine, refrigeration and cooling tower installtion etc...
Chemical, petrochemicals, refineries, sugar, paper, laminates. Industries, rubber, handling of hydrocarbons, organic and inorganic chemicals, condensate, d.m. water, food industries, salt, textiles Industries
power stations and industries such as pulp, fertilizer, etc...
Corrsive and abrasive process chemicals like acids, alkalis, solvents, slurries, hydrocarbons, crystallizing liquids, nitric, ammonia, phosphate, chemical effluents, etc...
Operating Data:
- Capacity : Up to 2200 M3/hr.
- Head : Up to 150 Mtr.
- Discharge Size : 25 mm to 300 mm
- Temperature : 350°C
- Speed : Up to 3500 rpm
- Pressure : Up to 15 kg/cm2
- M.O.C : C. I. , C. S. , SS-304 / 304L, SS316 / 316L, 904L, Alloy-20, CD4MCU, Hastalloy B & C, etc..
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt.
