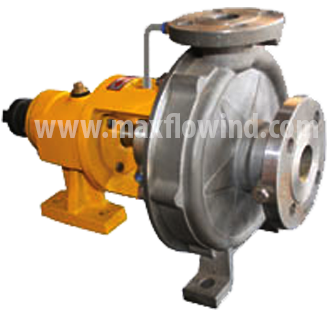

Chemical Pump
MFI-STS Series
End Suction, Horizontal, Centrifugal Coupled Pumps With Semi Open Impeller
Application:
Organic/Inorganic chemical, volatile liquids, corrosive chemicals, caustic process, effluent, filter press, slurry application.
Pharmaceutical, dyes, textiles, kerosene, diesel and other solvents.
ETP, STP & waste water treatment plant, fertilizers, cement and steel industries.
For pumping chemicals, with solids in suspension polluted liquids.
Widely used for public and civil engineering.
Paper and pulp industries.
Operating Data:
- Capacity : Up to 80 M3/hr.
- Head : Up to 62 Mtr.
- Discharge Size : 25 mm to 150 mm
- Temperature : 350°C
- Speed : Up to 3500 rpm
- Pressure : Up to 4.8 kg/cm2
- M.O.C : C. I. , C. S. , SS-304 / 304L, SS316 / 316L, 904L, Alloy-20, CD4MCU, Hastalloy B & C, etc..
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt.
