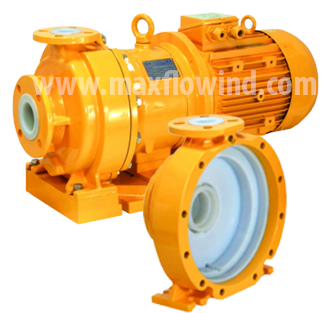

Pvdf Pump
MFI-PVDF Series
Pvdf Centrifugal Process Pumps
Application:
Water treatment plant, effluent treatment plant, elecro plating, picking & steel rolling mills.
Excellent for transfer and loading - unloading like HCL, Sulphuric Acid/Alkali, Caustic Liquid.
Scrubbing of corrosive gases like NH3, CO2, SO3, SO2, SO2, I2, F2, Br2, Cl2, etc.
For handling liquids in various industries like textile, paper, cellulose, sugar, steel, food, having temperature range, materials, etc...
Ideal for circulation of chemical in metal finishing industry.
Natural choice for pickling line & scrubber in steel plants.
High capacity transfer pump, filter press for dyes & chemicals, descaling oil & other fuels.
Pesticide / Insecticide Plants, Chlorine Plants.
Pharmaceutical and bulk Drug Plants.
Operating Data:
- Capacity : Up to 250 M3/hr
- Head : Up to 90 Mtr.
- Discharge Size : 25 mm to 100 mm
- Temperature : Max. 120°C
- Speed : Up to 3500 rpm
- Pressure : Up to 9 kg/cm2
- M.O.C : 100% SOLID PVDF & PVDF LINING
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt.
