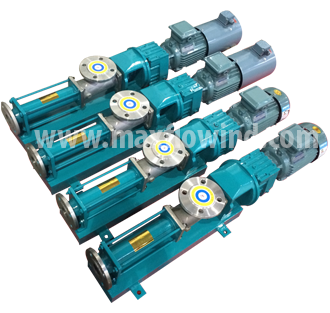

Progressive Cavity Pump
MFI-SCRW Series
Progressive Cavity Screw Pumps
Main Design Features:
Materials of construction, available in cast iron or stainless steel, with a choice of rotor and stator materials to suit individual application e.g. hard chrome plated rotor or natural stator.
Robust drives, specially selected drives and gearboxes for longer life. Options include electric motor drive units supplied as overhead vee belt driven. Direct-coupled or variable speed drives with mechanical variable speed or frequency inverter
Low running speed, reduced wear for a longer working pump life which extends the periods between routine maintenance, important in abrasive application.
Application:
Effluent treatment
Pulp & paper
Sugar & distilleries
Chemical & petrochemicals.
Ceramics & insulator
Starch industries
Cosmetics & medicines
Sweets & confectionaries
Dairy
Paint & varnishes
Fruits & vegetable processing
Mining
Beverage industry
Operating Data:
- Capacity : Up to 150 m3/hr
- Head : Up to 30 kg/cm2
- Discharge Size : 25 mm to150 mm
- Temperature : Max. 120°C
- Speed : Up to 600 mm
- Viscosity : Up to 1,00,000 CST
- Solid Hand. Size : Max. 25 mm
- M.O.C : C.I., WCB, SS-304, SS 304L, SS 316, SS 316L, Alloy - 20, CD4MCU, SS410, Tool Steel etc...
- Stator : Natural, nitrile, Neoprene, EPDM, Hypalon, Viton, Food grade & Special Quality Rubber.
Optional Accessories:
M.S. Fabricated Base Frame/Flexible Coupling/Coupling Guard/Foundation Bolt
